Product and Product Description |
|
|
| Specifications :- |
|

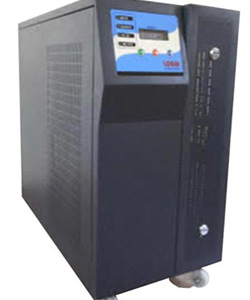

| 1. Online UPS |
|
 |
TECHNICAL SPECIFICATION ONLINE UPS SERIES |
|
|
CAPACITY |
3 KVA |
5KVA |
7.5/10KVA |
10/15/20/30KVA |
40/60/120KVA |
INPUT |
SINGLE |
SINGLE /THREE |
SINGLE /THREE |
THREE |
THREE |
OUTPUT |
SINGLE |
SINGLE |
SINGLE |
SINGLE /THREE |
THREE |
DC CHARACTERISTICS
NOMINAL Float Voltage
Recharge Time
By pass ( optional ) |
72V/120V 120 v /192
8 hrs. for 100 % recover
Manual |
192/240V/360V
8 hrs. for 100 % recover
Manual |
360 V
8 hrs. for 100 %recover
Manual |
Output
O/P Voltage / regulation
Full Load Current
Nominal Frequency
Power Factor
Over Load
Static Voltage Regulation
Wave Form
Total Harmonic distortion
Inverter Efficiency
Crest Factor
Change
Battery
Inverter
Indicators
Metering
Display ( optional) |
230V +-1%
Rated At 0.8 PF
50 HZ +/-0.5Hz
0.8p.F
125 % for 10 minutes & 150 % for 1 minute
+/-6% for 50 % step load change
+/-1% for Nominal for all variations of Line load
Sine wave
For linear loads < 2.5 %. For non linear loads < 5 %
85 % to 93 % on full load depending on capacity
1:4
Input Circuit, Breaker Charger, Over voltage, charger over current limit.
Phase sequence (3 Phase).
Battery low cut off / current limit, HRC fuse in battery path, Battery Over charge trip.
Output over voltage / over load trip. Current limit , S.C.Protection
Mains ON , Battery Low , Inverter ON, Fault/ Trip
Output Voltmeter, Output AMMETER ( Optional)
LCD display |
Input
Voltage Range
Power Factor
Frequency |
230 V +/-20 In single phase
At 0.8 TYPICAL
50 Hz +/-3 Hz |
415V, +/-25 % -30 % in three phase
At 0.8 TYPICAL
50 Hz +/-3 Hz |
|
| 2.Sine Wave UPS |
|
| (A) Capacity 650 Va to 1 KVA |
 |
| |
| (B) Capacity 1.5 KVA |
 |
| |
| (C) 2 KVA - 3 KVa & 4 KVA – 5 KVA |
 |
| |
| (C) 6 KVA to 10 KVA |
 |
| |
|

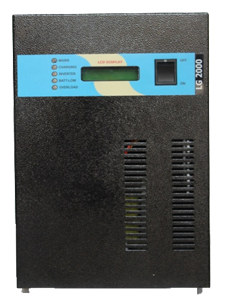

LOGIN DSP SINE WAVE INVERTER / UPS. |
PARAMETERS |
POWER RATING |
|
650 VA to 1.5 KVA |
2 KVA to 5 KVA |
6 KVA to 10KVA |
Input
|
Voltage |
V |
Narrow Range ( UPS Mode ) 170 V – 270 V |
Wide Range ( Inv Mode ) 120 V -280 V |
OUT PUT |
Charger Topology |
|
650 VA to 5 KVA BOOST Mosfet Based , ,four step charger
6 KVA to 10 KVA- IGBT Based ,four step charger |
Power factor |
|
0.8 |
Voltage |
|
230 V +/- Single Phase |
Voltage Regulation |
|
+/-4 % |
Frequency |
|
50 Hz in Battery mode / same as in mains mode |
Frequency Regulation |
|
100 % |
Wave Form |
|
Sine wave |
Over Load Capacity
|
|
> 110 % 5 times auto reset , 6th time shut down
>150 %: output goes down by current limit. |
Audible warning |
Battery Back Up Ending |
|
Intermittent |
Over load |
|
Continuous with beep |
Indication |
LCD |
|
Battery Voltage , Inv O/P voltage ,AC Input voltage , Wattage of load , Charger on/off , UPS / Inv mode , Short circuit , Overload trip, |
Inverter |
Efficiency |
|
>90% Typical |
Transfer time
|
Inverter |
|
10-12 milliseconds |
UPS |
4-5 milliseconds |
Temperature |
|
0-55 C |
Humidity |
% |
5-95 ( Non – condensed) |
DC VOLTAGE
|
Nominal Voltage |
|
12 V – 24 V |
24 V -72 V |
96 V – 192 V |
Charging Current |
|
10 AMPS |
|
| 3.Tubular Battery |
|
|
LOGIN Tubular Battery Specifications |
Sl no |
Capacity |
Charging current |
Overall Dimensions in mm
( + ) 5mm |
Initial
|
Normal |
Length |
Width |
Height |
1. |
40 AH |
4.0 |
4.0 |
|
|
|
2. |
60 AH |
6.0 |
6.0 |
510 |
220 |
280 |
3. |
80 AH |
8.0 |
8.0 |
515 |
273 |
280 |
4. |
100 AH |
10.0 |
10.0 |
520 |
280 |
340 |
5. |
120 AH |
12.0 |
12.0 |
520 |
280 |
340 |
6. |
150 AH |
15.0 |
15.0 |
500 |
200 |
440 |
7. |
180 AH |
15.0 |
15.0 |
500 |
200 |
440 |
8. |
200 AH |
15.0 |
15.0 |
500 |
200 |
440 |
|
| |
|
 |
 |
 |
| Water level Controller |
Water Purifier |
Solar Water Heater |
We supply Automatic Water Level Controller under brand name of “Aqua Sensor”. The Automatic Water Level Controller offered by us is a fully automatic water level controller. Our Automatic Water Level Controller helps in prevention of water wastage. Additionally, this great water saving device controls pump and over head tank as well.
Designed with cutting edge technology this Automatic Water Level Controller is known for its functional excellence. |
|
Our Reverse Osmosis Water Purifiers are available under brand name of Aqua Power. We have adopted Reverse Osmosis (RO) technology for Aqua Power because we want you to be safe and healthy, whether at work place or at home. Our Reverse Osmosis Water Purifiers have unique multistage filtration which uses RO membrane to get rid of not only germs & bacteria, but also carcinogenic heavy metals like arsenic, mercury cadmium and cobalt. It also makes the water tasty by removing dissolved impurities. These Reverse Osmosis Water Purifiers are effective, safe and affordable as well.
The house of LOGIN has adopted Reverse Osmosis (RO) technology for Aqua Power because we want you to be both safe and healthy, whether in work place or at home. It’s unique multistage filtration using RO membrane gets rid of not only germs & bacteria but also carcinogenic heavy metals like arsenic, mercury cadmium and cobalt. It also make the water tasty by removing dissolved impurities. |
|
|
|
| |
|
|
|
|
|
| |
